DES-CASE Visual Analysis Systems
Oil Level Gauge Indicators

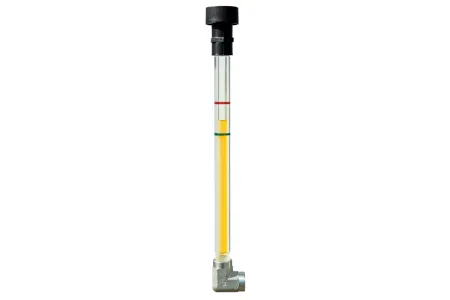

The Oil Level Indicator (OLI) was developed in response to the need of maintenance professionals to gauge the oil level inside large tanks, gearboxes and reservoirs. The OLI is a clear high performance polyamide column with 1/2″ NPT threads at each end. Red and green level marker stickers are included with the OLI to mark upper and lower limits, or to designate running oil level and idle oil level. Utilizing the drain port, operators can visually monitor the fluid level within reservoirs.
* Stainless steel fittings and breather cap sold separately.
* Stainless steel fittings and breather cap sold separately.
Applications
• Pumps
• Gearboxes
• Storage Tanks
Descriptions
1. ND-2 Breather
*Sold separately
2. Idle/Maximum Oil Level Marker
3. Running/Minimum Oil Level Marker
4. Stainless Steel Fitting
*Sold separately
SPECIFICATIONS
Material
• Transparent Polyamide
Recommended Temperature Range
• -40˚F to 200˚F
• -40˚C to 93˚C
Maximum Operating Pressure
• 65 psi – 4.48 bar
Chemical Compatibility
• All gear, mineral and synthetic oils
Available Options
• Lengths ranging from 3″ to 15″
• Stainless steel fittings
• 2 micron breather cap (3″ to 12″ models)
• Custom lengths available upon request
*Comes in variety of sizes, please do contact our representative for more informations.
