• Decontaminating systems
• Flushing new or repaired systems
• Dispensing new oil
• Pre-filtering new oil
• Evacuating used oil
• Topping off reservoirs
• Collecting oil samples for analysis
Intended Use
• To be used for offline, secondary filtration and not inline filtration
• In general industrial environments, both indoors and outdoors (IP rating of 54)
• For filtering mineral-based industrial oils and most synthetic oils with a maximum operating viscosity range of ISO 460 at 100°F/38°C within ambient temperature ranges of -8°F to 104°F (-22°C to 40°C)
• Placed at the same level or below the equipment being filtered and within reach of the recommended standard 6 foot hoses
• This system should be stored and used on a level surface, right side up, in a low-traffic area, and connected to the appropriate power source

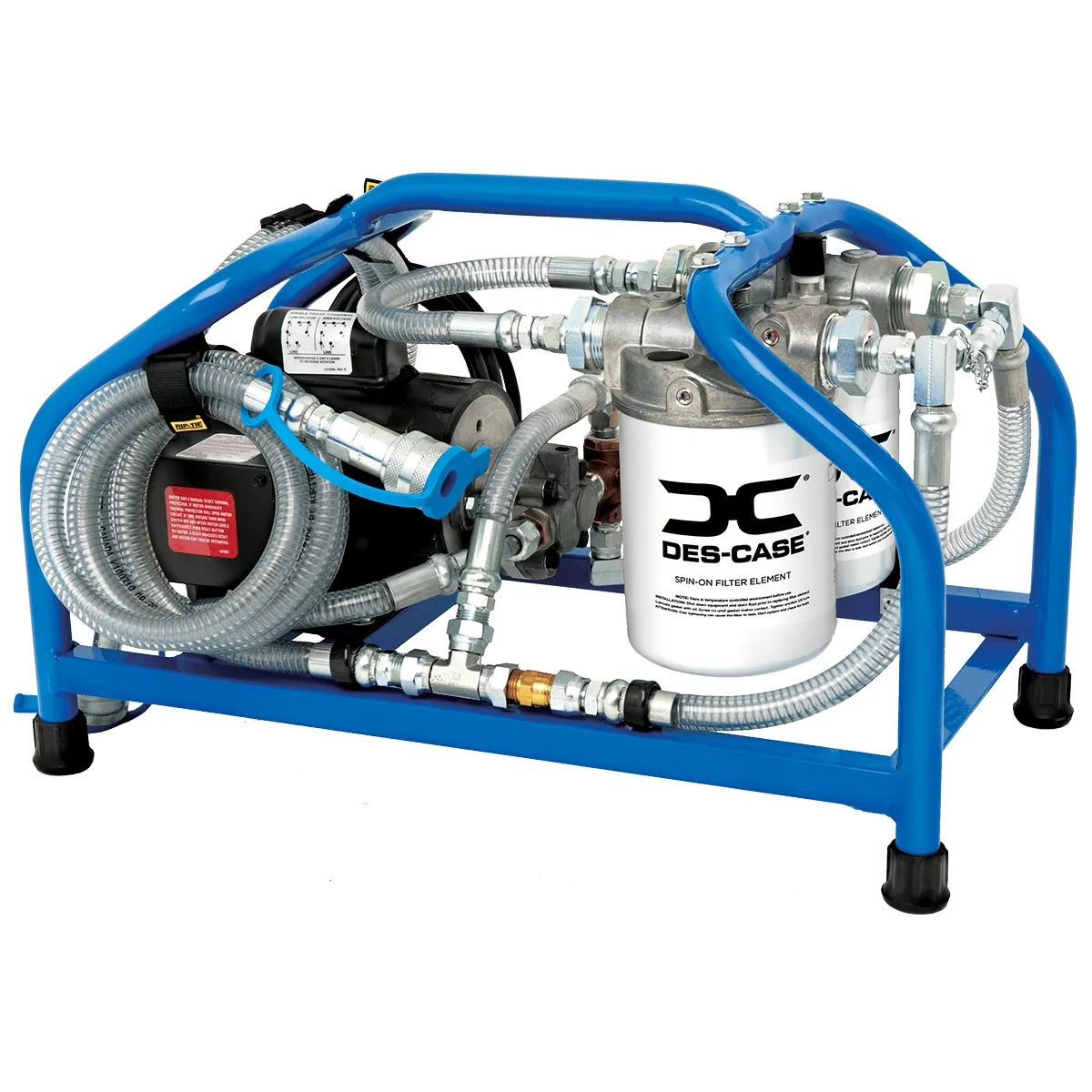

Compact, portable and customized for your application, the drum topper is an option you can carry wherever you need to go. Our drum topper provides many uses, including: Filtering new oil directly from the drum Allowing you to fill small totes Acting as an offline filter for critical equipment You can completely customize your drum topper below. Simply click on the desired options to create your specific drum topper unit.
What is Standard
• Automatic pressure relief valve
• Non-bypass filter heads

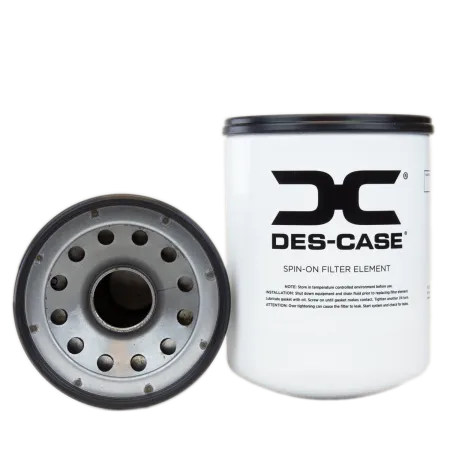

• Dual-stage filtration
• 6′ hose assemblies with various quick connect options
• 25′ power cord (for electric motors only)
• Industrial powder-coated paint
• One-year warranty
SPECIFICATIONS
For filtering mineral-based industrial oils and most synthetic oils with a maximum operating viscosity range of ISO 10-460 (2000ssu/431cSt) at 100°F/38°C within ambient temperature ranges of -8°F to 104°F (-22°C to 40°C)
Materials:
• Frame: Aluminum
• Paint: Industrial powder coat
• Filter Heads: Aluminum
• Fittings: Zinc-plated steel and/or brass
• Pumps: Aluminum/steel
• Hoses: Clear PVC with steel wire
• Gaskets: Buna-N
Filter Indicators:
• Filter indicator pops at 22psid (1.55bar) as warning that filter elements need to be replaced
Pump Relief:
• Opens at 65psi (5.49bar)
Weight:
• Approximately 45-55lbs/20.4-24.9Kg (will vary depending on options selected)
Dimensions:
• 24.5″L x 13.5″W x 15.4″H
Power Supply
What type of power supply do you need?
• 115v, 60 Hz, 1725 rpms, 5 amps
• 230v, 60 Hz, 1725 rpms, 2.5 amps
• 110v, 50 Hz, 1425 rpms, 5.4 amps
• 220v, 50 Hz, 1425 rpms, 2.7 amps
• Air / 1.7 hp, 0-3000 rpms
Flow Rate
Select the desired flow rate.
• 1 gpm
• 3.5 gpm
Viscosity Range:
• 1 GPM pump: ISO VG 10 to 460 at 100 °F (38 °C)
• 3 GPM pump: ISO VG 10 to 100 at 100 °F (38 °C
