Applications

• Decontaminating systems
• Cooling systems
• Collecting oil samples for analysis

Intended Use
• To be used for offline, secondary filtration and not inline filtration
• In general industrial environments, both indoors and outdoors (IP rating of 54)
• For filtering mineral-based industrial oils and most synthetic oils with a maximum operating viscosity range of ISO 680 at 100°F/38°C (3,000 ssu/648cSt) within ambient temperature ranges of -15°F to 104°F (-26°C to 40°C)
• Placed at the same level or below the equipment being filtered and within reach of the recommended standard 12 foot hoses
• This system should be stored and used on a level surface, right side up, in a low-traffic area, and connected to the appropriate power source

Descriptions

Panel units are ideal for mineral-based industrial fluids in small to medium-sized reservoirs with low flow rates. Whether you have an application that needs regular filtration, or a maintenance location where you bring equipment to be filtered, the Des-Case panel unit is a made-to-order solution that can be mounted where you need it most. Build yours today by simply clicking on the desired options below.

Power Supply

What type of power supply do you need?
• 115v, 60 Hz, 1725 rpms, 13 amps
• 230v, 60 Hz, 1725 rpms, 6.5 amps
• 110v, 50 Hz, 1425 rpms, 12.4 amps
• 220v, 50 Hz, 1425 rpms, 6.2 amps
• Air / 1.7 hp, 0-3000 rpms

Viscosity Range: ISO VG 10-680 at 100F

Flow Rate

Select the desired flow rate.
• 1.5 gpm
• 4 gpm
• 8 gpm

Performance will vary depending on operating temperature, fluid type, and unit options. Call Des-Case for assistance in choosing a flow rate specific to your needs.


SPECIFICATIONS


Operating Temperatures
• -40°F to 150°F (-40°C to 66°C) for standard unit with clear PVC plumbing hoses
• -20°F to 212°F (-28°C to 100°C) for custom unit with hydraulic plumbing hoses and Viton or EPDM seals

Materials
• Frame: Carbon steel
• Paint: Industrial powder coat
• Filter Heads: Aluminum
• Fittings: Zinc-plated steel and/or brass
• Pumps: Aluminum/steel
• Plumbing Hoses: Clear PVC with steel wire
• Gaskets: Buna-N

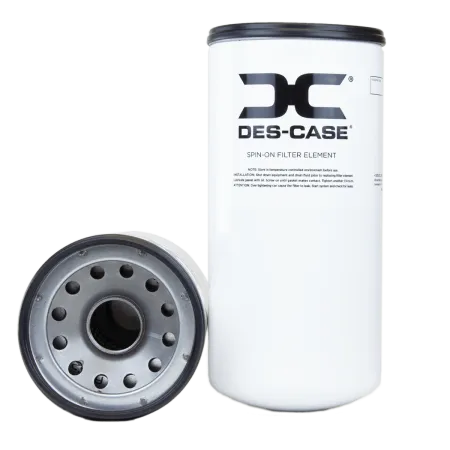

Filter Indicators
• Filter indicator pops at 22 psid (1.55 bar) as warning that filter elements need to be replaced

Pump Relief
• Opens at 65 psi (5.49 bar)

Weight
• Approximately 100 to 130 lbs (50 to 61Kg). Will vary depending on option

Dimensions
• 15.6″L x 23.4″W x 25.8″H

Viscosity Range
• Up to ISO VG 680 at 100°F/38°C (3000ssu/ 648cSt)
